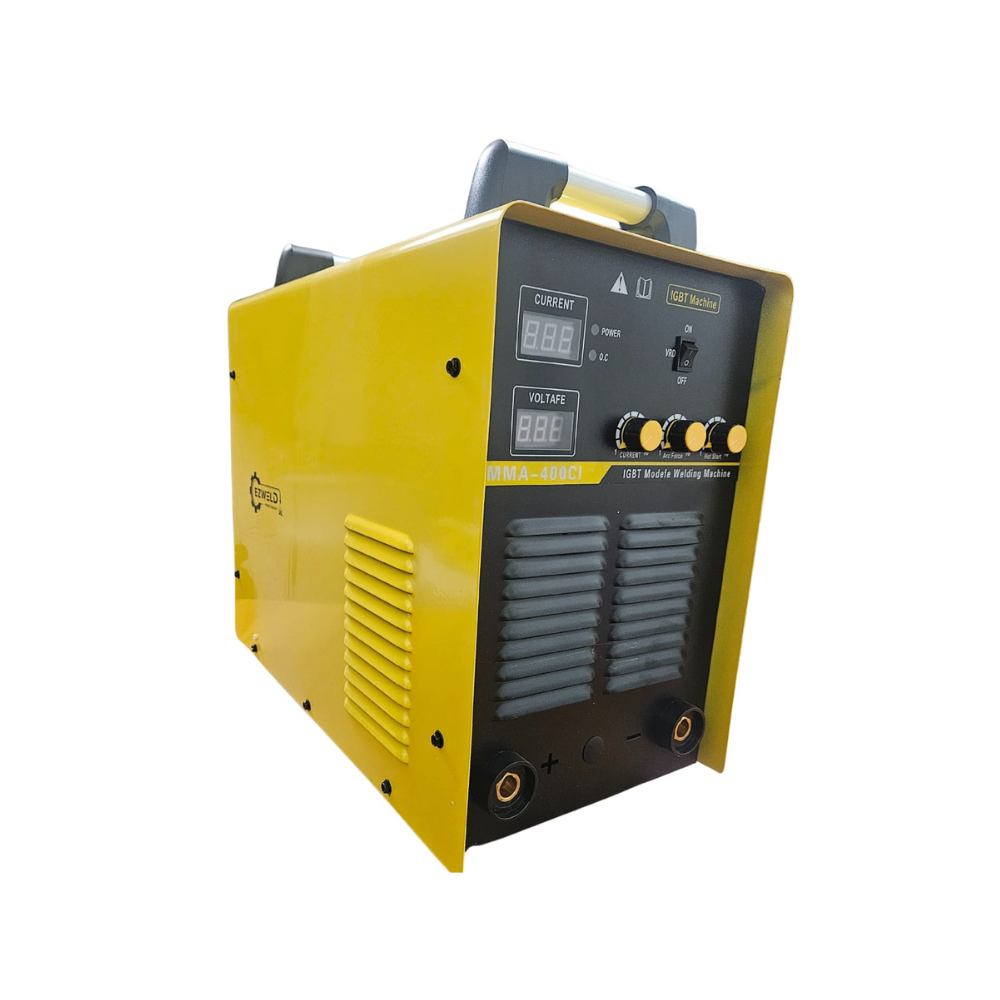

ARC 400 CI 3 PH
The ARC 400 CL 3welding machine delivers a blend of precision, robust construction, and user-friendly features aimed at both professional welders and hobbyists. Its digital control, adjustable arc features, and integrated safety and efficiency metrics make it an excellent choice for varied welding applications—from light fabrication to heavy maintenance tasks.
Features:
- MADE IN INDIA
- 5 PCB MACHINE
- 4 IGBT 25 N 120
- 3 DIOD CARD 1 YEAR
- 4 CAPACITOR
- EXTERNAL VRD SWITCH WITH COPER CABLE
- 35 – 50 PLUG CONNECTOR
- MCB SWITCH
Description
🔧 Key Features
- High Output Current: Provides up to 400 Amps, making it suitable for heavy-duty welding tasks.
- Three-Phase Power Compatibility: Operates on 415V 3-phase input, ensuring stable and efficient performance.
- IGBT Inverter Technology: Delivers superior arc stability, energy efficiency, and reduced power consumption.
- Digital Display & Controls: Allows precise adjustment of welding parameters for optimal results.
- VRD (Voltage Reduction Device): Enhances operator safety by lowering open-circuit voltage when idle.
- Adjustable Arc Force & Hot Start: Improves arc ignition and stability, especially with challenging electrodes.
- Heavy-Duty Build: Rugged metal housing with enhanced cooling for continuous operation.
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Output Current Range | 20 A – 400 A |
| Input Voltage | 415V (3 Phase) |
| Frequency | 50/60 Hz |
| Duty Cycle | ~60% @ 350 A, ~30% @ 400 A |
| Open Circuit Voltage (OCV) | ~70–80 V |
| VRD Voltage | < 35 V |
| Power Factor | ≥ 0.90 |
| Efficiency | ~85% |
| Cooling | Forced Air |
| Protection Features | Overheat, Over/Under Voltage, Single Phasing |
| Weight | ~15–25 kg (varies by model) |
| Enclosure Class | IP21 or higher |
🛠️ Applications
- Ideal for MMA (Stick) welding in construction, shipbuilding, heavy fabrication, and repair work.
- Compatible with a wide range of electrodes including cellulose, basic, and rutile types.
- Suitable for welding mild steel, stainless steel, cast iron, and other ferrous metals.
