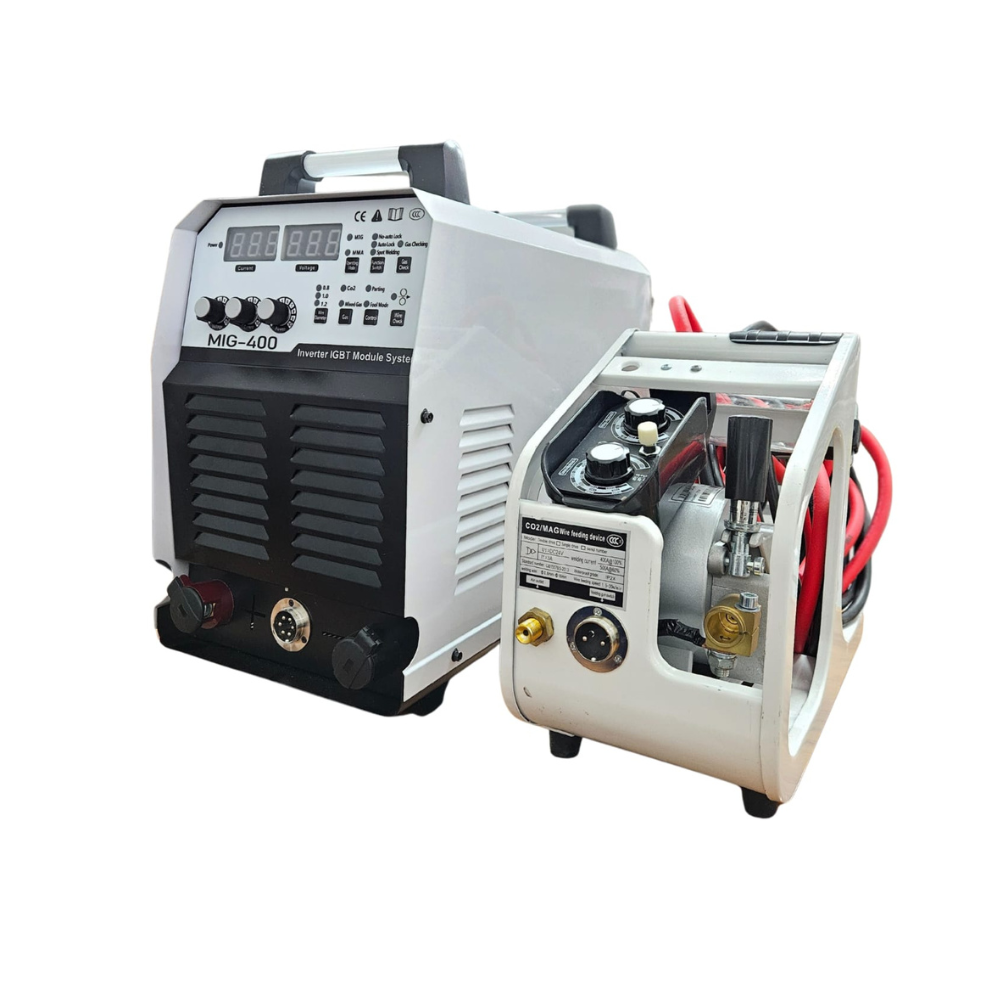

400 MIG EXTRNAL 3 PH ECO
The 400 MIG EXTERNAL 3 PH ECO welding machine is a high-performance industrial-grade MIG welder designed for demanding fabrication and manufacturing applications.
FEATURES:
- 50A1200 V MODULE 2 PIS (SL)
- CONTRAL CARD -1
- 80U40 DIODE 8PCS (SL)
- CONTROL TRANSFARMER -1
- TUBE IGBT CARD -1
- ARC / MMA INBUILT -1
- WITH CO2 WORKING -1 MIG TOURCH 36 KD 3 MTR
- WITHOUT CO2 WORKING -1
- 0.08 AND 1.0 MM WORKING
Description
🔧 Key Features
- Three-Phase Power Compatibility: Operates on 415V 3-phase input, ensuring stable and efficient performance.
- IGBT Inverter Technology: Provides superior arc stability, energy efficiency, and reduced power consumption.
- Multiprocess Capability: Supports MIG (GMAW) and MMA (Stick) welding, making it versatile for different welding tasks.
- External Wire Feeder: Ensures smooth and consistent wire feeding for precise welding.
- Digital Display & Controls: Allows precise adjustment of voltage, current, and wire speed.
- High Duty Cycle: Offers 60% duty cycle at 400A, ensuring continuous operation for demanding welding tasks.
- Heavy-Duty Build: Rugged metal housing with enhanced cooling for continuous operation.
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Welding Process | MIG (GMAW), MMA (Stick) |
| Input Voltage | 415V (Three Phase) |
| Output Current Range | 40 A – 400 A |
| Duty Cycle | 60% @ 400 A |
| Wire Compatibility | 0.8mm – 1.2mm |
| Open Circuit Voltage (OCV) | ~65 V |
| Power Factor | ≥ 0.85 |
| Efficiency | ~85% |
| Cooling | Forced Air |
| Protection Features | Overheat, Over/Under Voltage, Single Phasing |
| Weight | ~32 kg |
| Dimensions (L×W×H) | ~550 × 280 × 545 mm |
🛠️ Applications
- Ideal for MIG welding in fabrication, automotive repairs, and industrial manufacturing.
- Suitable for welding mild steel, stainless steel, and aluminum with appropriate wire and shielding gas.
- Works well for gasless flux-cored welding, making it convenient for outdoor use.
