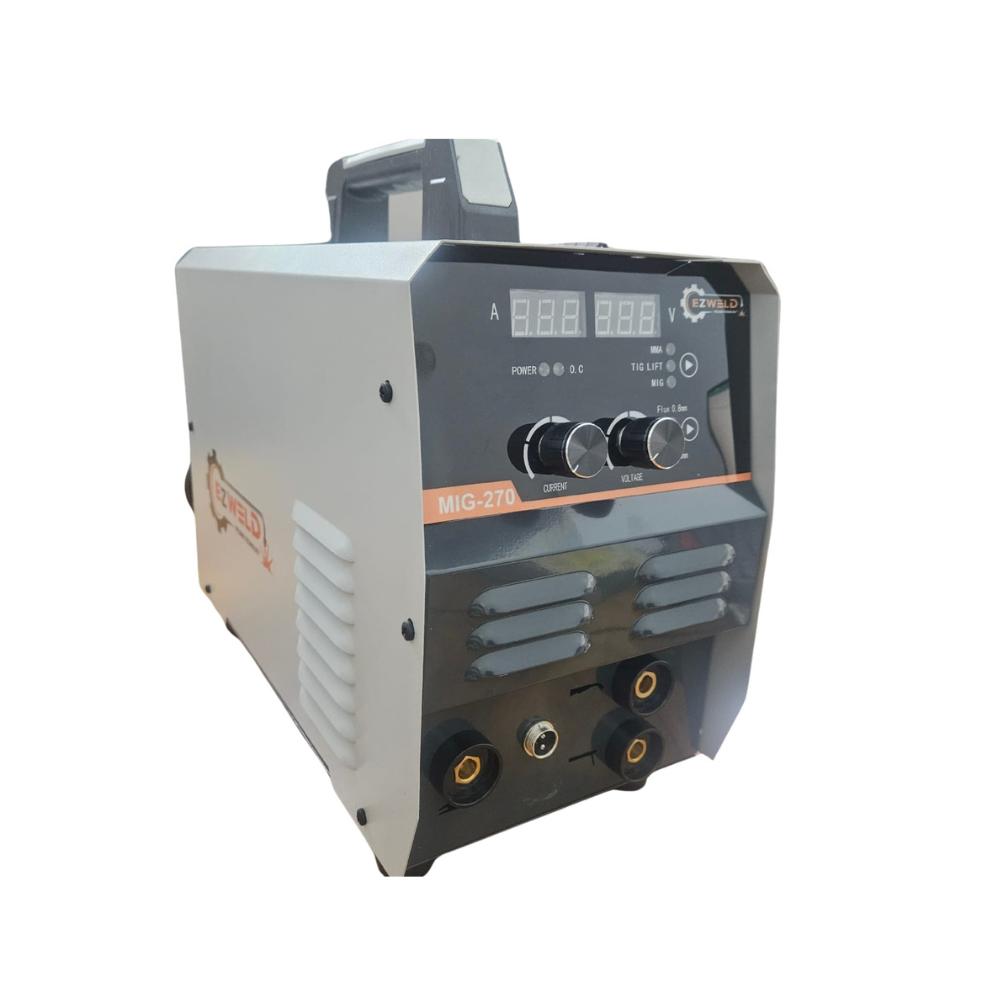

3 270 MIG 1 PH 5 KG MIG

The 3 270 MIG 1 PH 5 KG MIG welding machine is a versatile single-phase inverter-based welder designed for professional and industrial applications.

FEATURES:

GASLESS WELDING MACHINE
TIG WELDING INBILT
ARC WELDING
5 KG 0.8 AND 1.00 MM FLUX CODE
3.5 ” FAN
450-820 UF CAPECITOR -6
DODE – 2 MIG TOURCH 24 KD 3 MTR
IGBT – 6
SINGALE PCB

🔧 Key Features

Multiprocess Capability: Supports MIG, MMA (Stick), and TIG Lift welding, making it a flexible choice for various welding tasks.
Single-Phase Operation: Runs on 230V single-phase power, suitable for workshops and small-scale industrial use.
IGBT Inverter Technology: Ensures stable arc performance, energy efficiency, and reduced power consumption.
Digital Display & Controls: Allows precise adjustment of voltage, current, and wire speed for optimal welding results.
Flux-Cored & Solid Wire Compatibility: Works with 0.6mm, 0.8mm, and 1.0mm welding wires, supporting both gas and gasless welding.
Compact & Portable Design: Weighs approximately 6.8 kg, making it easy to transport and store.
Safety Features: Includes overheat protection, overload protection, and IP21-rated splash resistance.

📐 Technical Specifications

Parameter	Value
Welding Process	MIG, MMA, TIG Lift
Input Voltage	230V (Single Phase)
Output Current Range	50 A – 270 A
Duty Cycle	~60% @ 250 A, ~30% @ 270 A
Wire Speed Range	2.2 – 12 m/min
Wire Compatibility	0.6mm, 0.8mm, 1.0mm
Protection Class	IP21
Cooling	Forced Air
Weight	~6.8 kg
Dimensions (L×W×H)	~43.5 × 23 × 35.5 cm

🛠️ Applications
• Ideal for MIG welding in fabrication, automotive repairs, and light industrial work.
• Suitable for welding mild steel, stainless steel, and aluminum with appropriate wire and shielding gas.
• Works well for gasless flux-cored welding, making it convenient for outdoor use.
