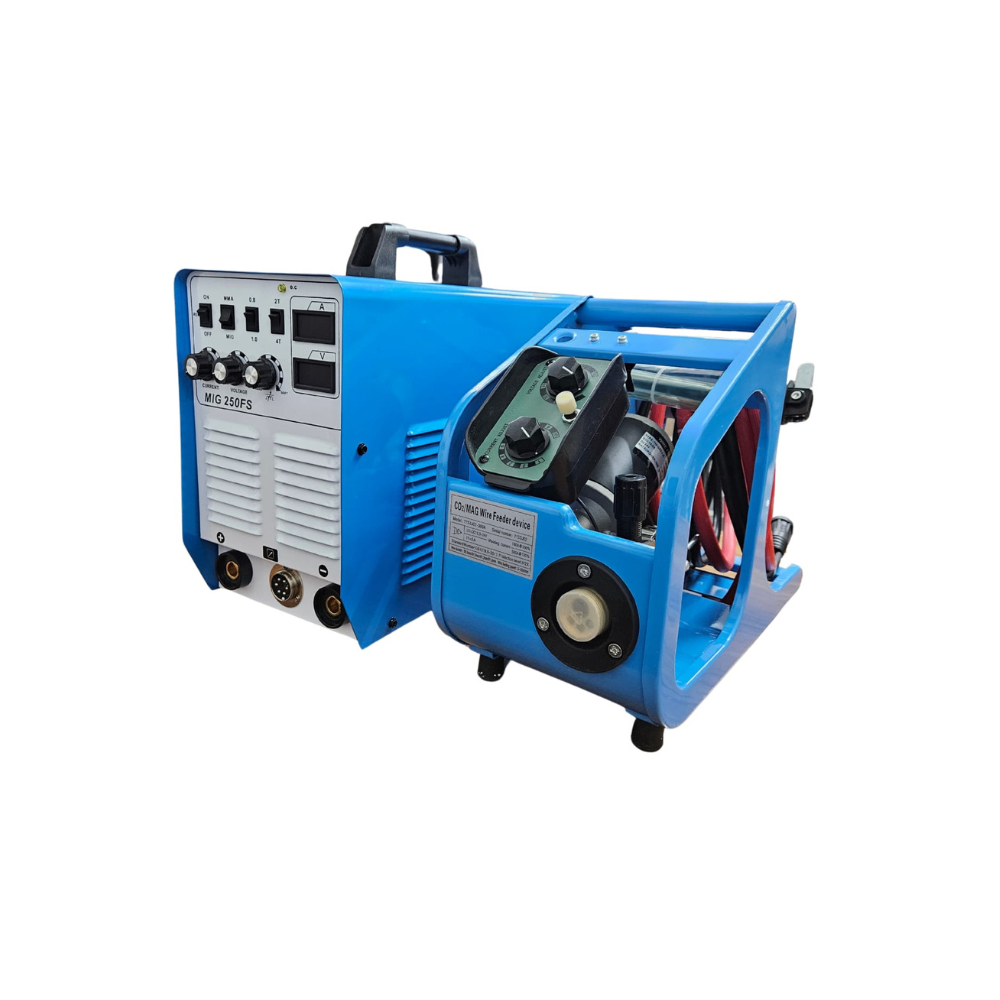

250 MIG EXTERNAL
The Welding 250 MIG External Machine is a high-performance inverter-based MIG welder designed for industrial and fabrication applications.
FEATURES:
- IGBT CARD -1
- CONTRAL CARD -1
- DIODE CODE -1
- CONTROL TRANSFARMER -1
- TUBE IGBT CARD -1
- ARC / MMA INBUILT -1
- WITH CO2 WORKING -1 MIG TOURCH 24 KD 3 MTR
- WITHOUT CO2 WORKING -1
- 0.08 AND 1.0 MM WORKING
Description
🔧 Key Features
- External Wire Feeder: Ensures smooth and consistent wire feeding for precise welding.
- IGBT Inverter Technology: Provides stable arc performance, reduced spatter, and high energy efficiency.
- Multi-Phase Compatibility: Operates on single-phase (230V) and three-phase (380V) power supply.
- Digital Display & Controls: Allows precise adjustment of voltage, current, and wire speed.
- Step-Controlled Power Source: Offers flexibility in welding different material thicknesses.
- Forced Air Cooling: Prevents overheating during continuous operation.
- Compact & Lightweight Design: Easy to transport and set up in various work environments.
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Welding Process | MIG (GMAW), FCAW |
| Input Voltage | 230V (Single Phase) / 380V (Three Phase) |
| Output Current Range | 50 A – 250 A |
| Duty Cycle | ~60% @ 200 A, ~30% @ 250 A |
| Wire Speed Range | 2.2 – 12 m/min |
| Wire Compatibility | 0.8mm, 1.0mm |
| Protection Class | IP21 |
| Cooling | Forced Air |
| Weight | ~18 kg |
| Dimensions (L×W×H) | ~50 × 20 × 37 cm |
🛠️ Applications
- Ideal for MIG welding in fabrication, automotive repairs, and industrial manufacturing.
- Suitable for welding mild steel, stainless steel, and aluminum with appropriate wire and shielding gas.
- Works well for gasless flux-cored welding, making it convenient for outdoor use.
